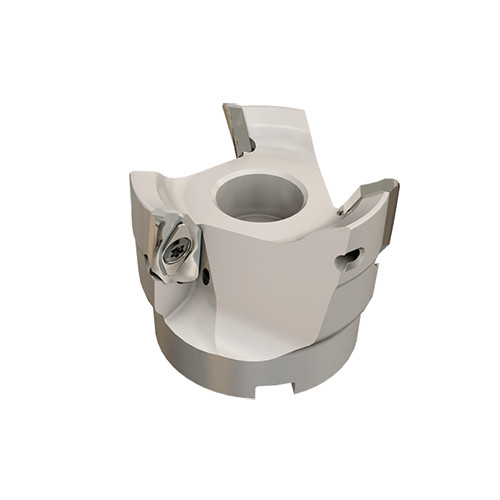

HM90 FAL-D2.00-.75-16
Face mills carrying HM90 APCR 1605... inserts for machining aluminum
Spécifications des produits

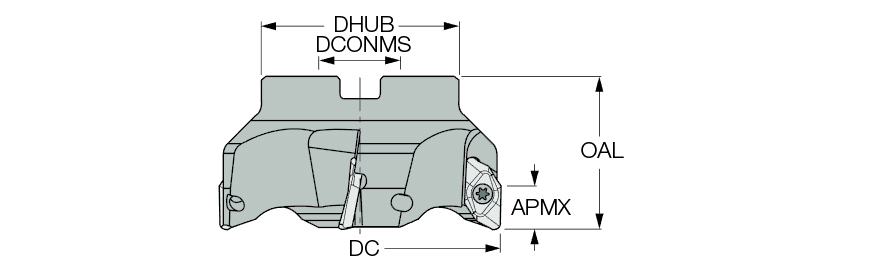

| Cutting Diameter (DC/DCX) | 2″ | Prédisposition pour lubrification interne (CSP) | Coolant Thru |
| Diamètre coupant (DC) | 2″ | Matière du corps | Steel |
| Nombre de dents (CICT) | 3 | Sens (HAND) | Right Hand |
| Profondeur de passe Maxi (APMX) | 0.61″ | Application | | Facing | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Diamètre connexion côté machine (DCONMS) | 3/4″ | Type de mesure | Inch |
| Longueur hors tout (OAL) | 1-3/4″ | Angle arête de coupe outil (KAPR) | 90 Degrees |
| Diamètre moyeu (DHUB) | 1.88″ | Tool Type | 90° Facemills for Al. & HTA |
| Arbor Style | A | Unité | I |
| Identification plaquette étalon (MIID) | HM90 APCR 160520R-P |
Caractéristiques du produit
| DescFamille | Face mills carrying HM90 APCR 1605... inserts for machining aluminum | NomDeLaGamme | HM90 FAL-16 |
| Remarques | When machining at very high cutting speeds (RPM>15000) and replacing the insert, it is also recommended to replace the screw Insert tightening torque: 53 (lbf x in) For inserts size 16 with a corner radius larger than .157, the corner of the pocket must conform to the formula (R body = R insert + .02) Corners larger than .177 to be used only on BR tools | NomDeLaMarque | Iscar |
| COO | Israel |
Informations de livraison
Poids du conditionnement
1.1133
Nom
Indexable Face Mills
NomDeLaGamme
HM90 FAL-16
NomDeLaMarque
Iscar
