Spécifications des produits

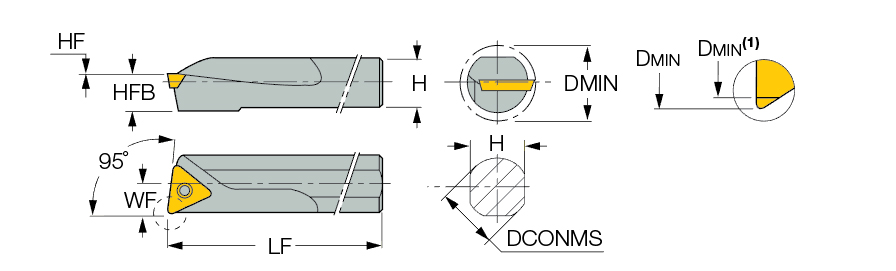

| Diamètre connexion côté machine (DCONMS) | 1/2″ | Prédisposition pour lubrification interne (CSP) | External |
| Longueur fonctionnelle (LF) | 6″ | Application | | Inter. triangulaire, att. 95° | |
| Longueur hors tout (OAL) | 6″ | Angle axial face de coupe (GAMP) | 4 Degrees |
| Hauteur attachement (H) | 0.46″ | Angle radial face de coupe (GAMF) | 0 Degrees |
| Dimension fonctionnelle (WF) | 0.29″ | Tool Type | Internal Indexble -Turn Tool |
| Identification plaquette étalon (MIID) | TP.. 2 | Matière du corps | Steel |
| Minimum Bore Diameter (DMIN) | 0.551″ | Type de mesure | Inch |
| Sens (HAND) | Right Hand | Unité | I |

Caractéristiques du produit
| DescFamille | Screw lock boring bars for 11° clearance triangular inserts. | NomDeLaGamme | BBN |
| Remarques | (1) When used with insert TPG-XL Dmin=Dmin -.046 | NomDeLaMarque | Iscar |
| COO | Israel |
Informations de livraison
Poids du conditionnement
0.3638
Nom
Indexable Internal Turning Tools
NomDeLaGamme
BBN
NomDeLaMarque
Iscar
