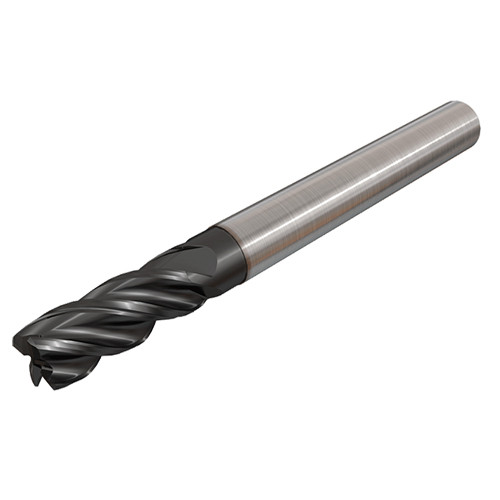

EC-E4L 08-18/26C08CFR1.5 IC900
4 flute endmills with 38° helix, variable pitch for chatter free roughing and finishing operations. High material removal rates. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 2XD.
Spécifications des produits
| Diamètre coupant (DC) | 8 mm | Angle Maximum descente pente (RMPX) | 5 Degrees |
| Diamètre connexion côté machine (DCONMS) | 8 mm | Nuance | IC900 |
| Profondeur de passe Maxi (APMX) | 18 mm | Diamètre dégagement (DN) | 7.8 mm |
| Longueur hors tout (OAL) | 63 mm | Demi angle du cône (BHTA) | 15 Degrees |
| Matière de l'arête de coupe | Carbide | Tool Type | Solid carbide center cutting endmills 90° |
| Revêtement | AlTiN | Maximum Feed per Tooth (fz(max)) | 0.08 mm/tooth |
| Nombre de dents (NOF) | 4 | Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Angle d'hélice denture (FHA) | 38 Degrees | Prédisposition pour lubrification interne (CSP) | External |
| Type de queue | Round | Matière du corps | Carbide |
| Forme en bout | Corner Radius | Type de mesure | Metric |
| Longueur utile (LU) | 26 mm | Connection Code Machine Side (CCMS) | Cylindrical |
| Matière possible | | Aciers | Aciers Inoxydables | Fontes | Matériaux durs | Alliages réfractaires | | Shank Diameter Tolerance (TCDMM) | h6 |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | | Cutting Diameter Tolerance | e8 |
| Rayon (RE) | 1.5 mm | Unité | M |
Caractéristiques du produit
| DescFamille | 4 flute endmills with 38° helix, variable pitch for chatter free roughing and finishing operations. High material removal rates. Used for machining alloyed and stainless steel, titanium and exotic materials. Full slot milling - up to 2XD. | NomDeLaGamme | EC-E4L-CF |
| COO | Israel | NomDeLaMarque | Iscar |
Informations de livraison
Poids du conditionnement
0.0430
Nom
Square & Corner Radius End Mills
NomDeLaGamme
EC-E4L-CF
NomDeLaMarque
Iscar
