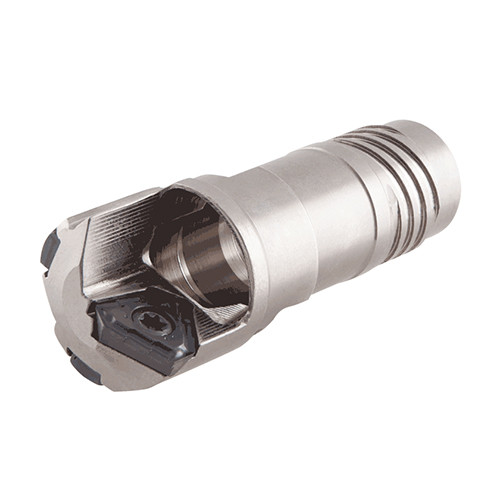

ISD-EF 1.130-1.220-FT
Deep single tube drills with external 4-start thread connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed
Spécifications des produits

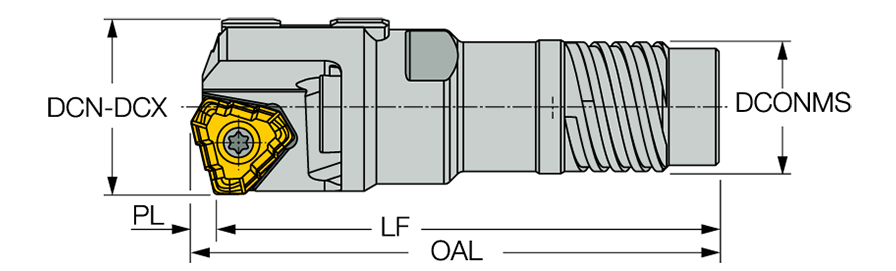

| Application | | Outils de forage | | Diamètre coupant Maximum (DCN) | 1.13″ |
| Diamètre connexion côté machine (DCONMS) | 0.925″ | Diamètre coupant Maximum (DCX) | 1.22″ |
| Tool Type | Deep Hole / Gun Drill | Type de mesure | Inch |
| Longueur hors tout (OAL) | 3.133″ | Matière du corps | Steel |
| Prédisposition pour lubrification interne (CSP) | Coolant Thru | Unité | I |
Caractéristiques du produit
| DescFamille | Deep single tube drills with external 4-start thread connection with triangular inserts, feature 3 chip splitting cutting edges and a wiper for high hole surface quality and high feed | COO | Japan |

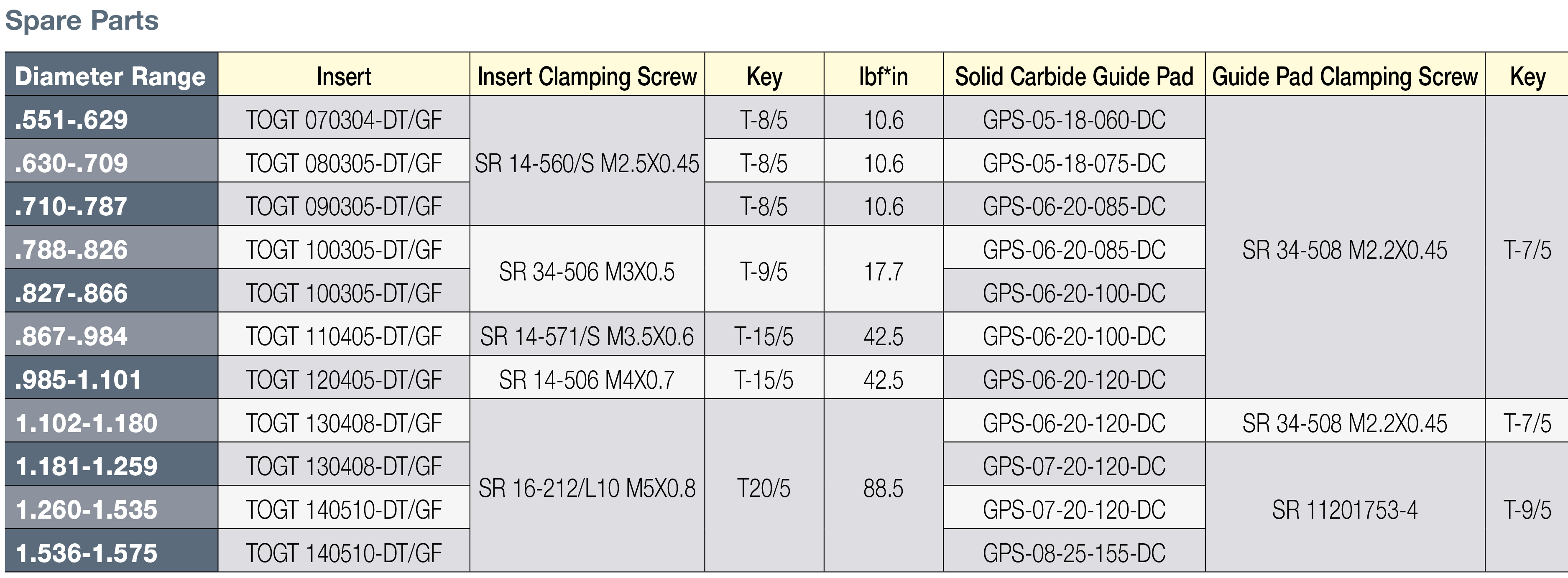

| Remarques | Each item in the attached catalog page represents a diameter range Inserts and guide pads to be ordered separately Ordering example: ISDEF 1.430FT Tube designation: D.551 - .614, External 2-start thread D.615 - 1.575, External 4-start thread For suitable pads and inserts see More Info |
