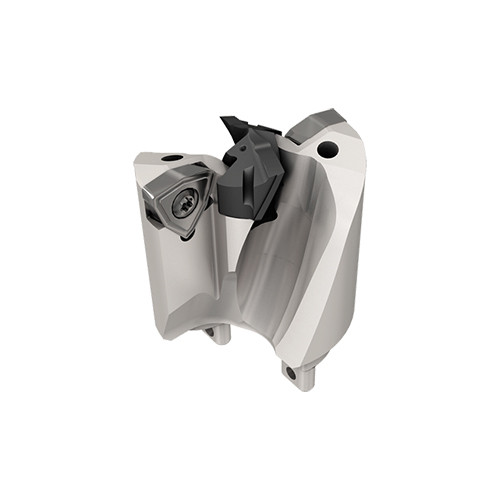

MD-MNC 320-IMH32-159-W5
Exchangeable drilling heads with IMH connection, carrying SUMOC-HAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
Spécifications des produits

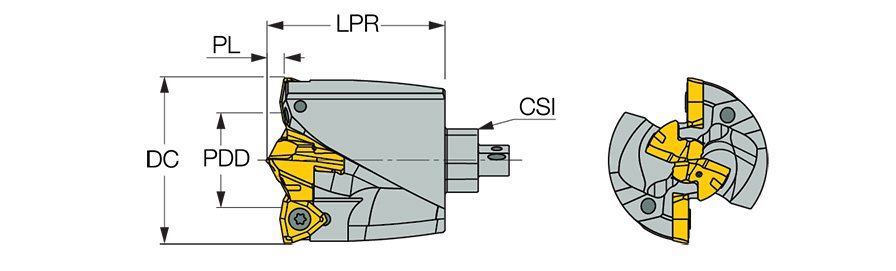

| Diamètre coupant (DC) | 32 mm | Type de mesure | Metric |
| Application | | Perçage | | Identification plaquette étalon (MIID) | ICP 159-MNC 4F |
| Code taille logement plaquette (SSC) | 5 | Point Length (PL) | 4.1 mm |
| Longueur dépassement (LPR) | 34.8 mm | Matière du corps | Steel |
| Prédisposition pour lubrification interne (CSP) | Coolant Thru | Unité | M |
Caractéristiques du produit
| DescFamille | Exchangeable drilling heads with IMH connection, carrying SUMOC-HAM pilot insert for precise centering, as well as two peripheral trigon WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Informations de livraison
Poids du conditionnement
0.2110
