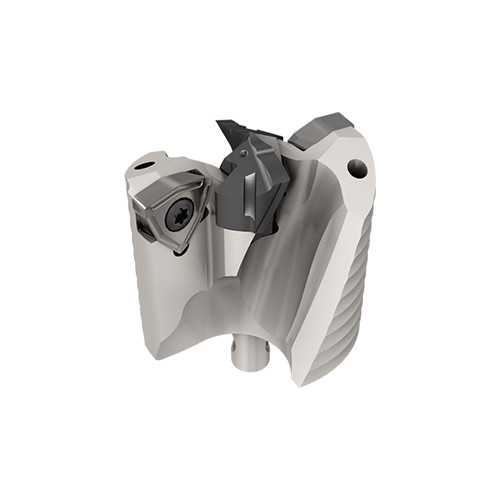

MD-MNC 420-189-W7
Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter
Spécifications des produits

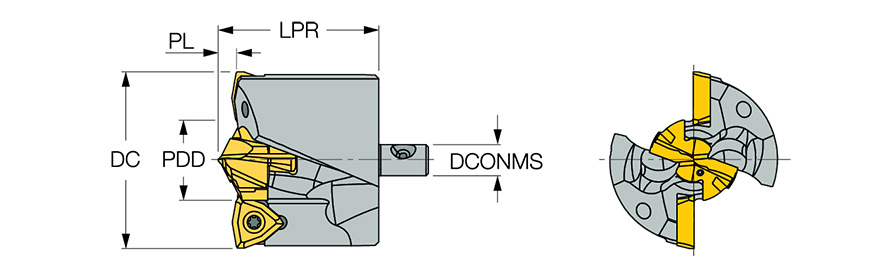

| Diamètre coupant (DC) | 42 mm | Identification plaquette étalon (MIID) | ICP 189-MNC 4F |
| Application | | Perçage | | Point Length (PL) | 5 mm |
| Diamètre connexion côté machine (DCONMS) | 7.1 mm | Matière du corps | Steel |
| Longueur dépassement (LPR) | 35.3 mm | Unité | M |
| Type de mesure | Metric |
Caractéristiques du produit
| DescFamille | Exchangeable drilling heads with Iscar MD connection, carrying SUMO-CHAM pilot insert for precise centering, as well as two peripheral triangular WCGX inserts for achieving a smooth surface finish and maintaining a tight hole diameter | COO | Israel |
Informations de livraison
Poids du conditionnement
0.2940
